Earthquakes

If you don't have a workspace, then continue on to the next step.

Use a terminal window to navigate to some parent folder, then run

npx neo-app@latest

You'll be prompted for a workspace name, starter app name, etc — accept the default for everything. As the command finishes it starts a server and opens a browser window.

The workspace contains a local copy of the API docs, an apps directory (where your apps are found), and some other directories.

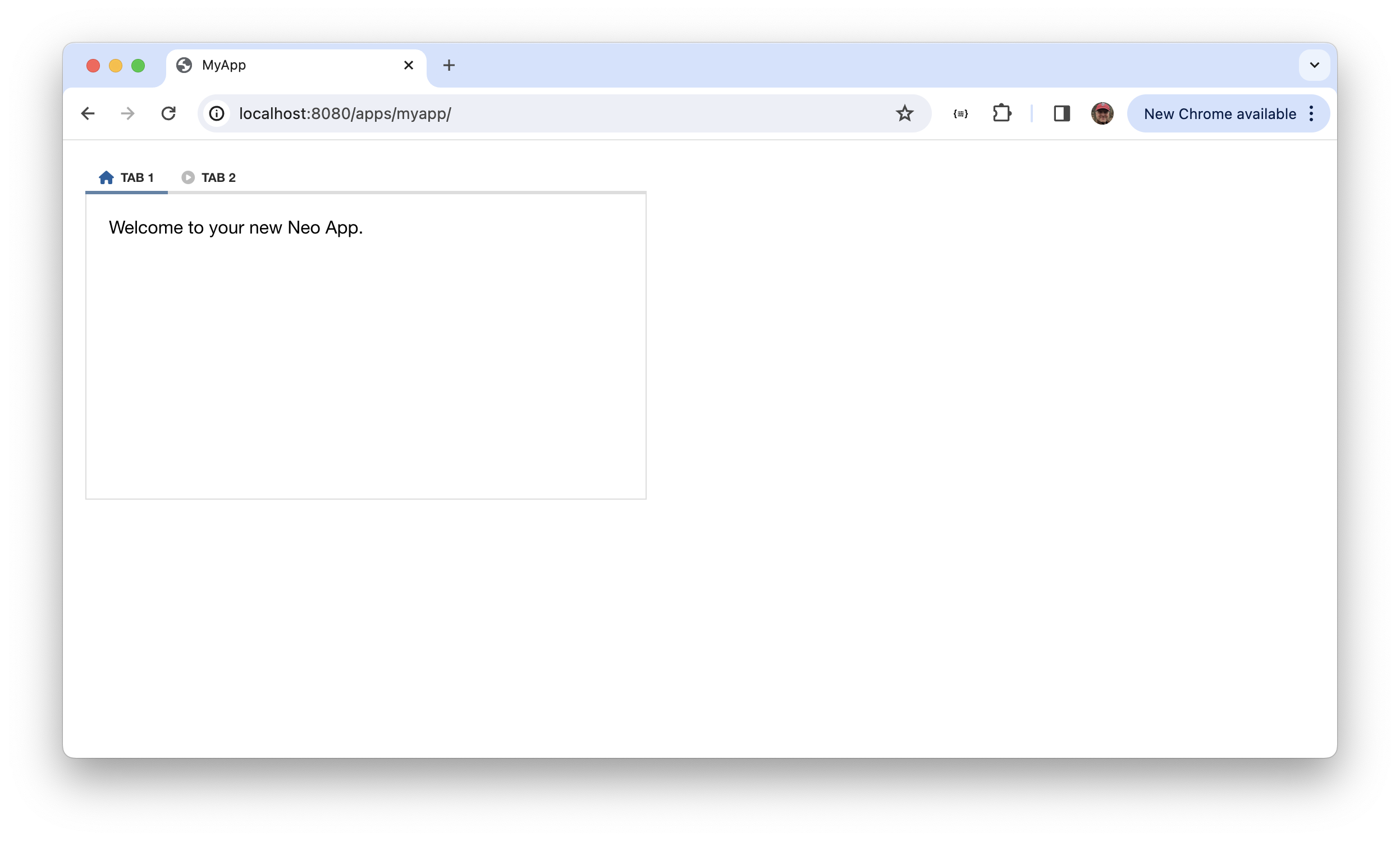

By default, an app named myapp was created. You can run it by entering the apps directory and clicking myapp. It's a folder containing an index.html along with the source code for the app.

Use a terminal window to navigate to the workspace and run the following script. Use "Earthquakes" as the app name, and defaults for everything else.

npm run create-app-minimal

After the script runs yous should see these files in the app/earthquakes directory.

view/MainContainer.mjs

• app.mjs
• index.html
• neo-config.json

If you look in neo-config.json you should see this content. Note the mainThreadAddons block — it reflects the add-ons you chose when you followed the instructions in the script.

{
    "appPath"         : "../../apps/earthquakes/app.mjs",
    "basePath"        : "../../",
    "environment"     : "development",
    "mainPath"        : "../node_modules/neo.mjs/src/Main.mjs",
    "mainThreadAddons": ["DragDrop", "Navigator", "Stylesheet"],
    "workerBasePath"  : "../../node_modules/neo.mjs/src/worker/"
}

You're free to edit neo-config.json if you were to change your mind later about the theme or need for other add-ons.

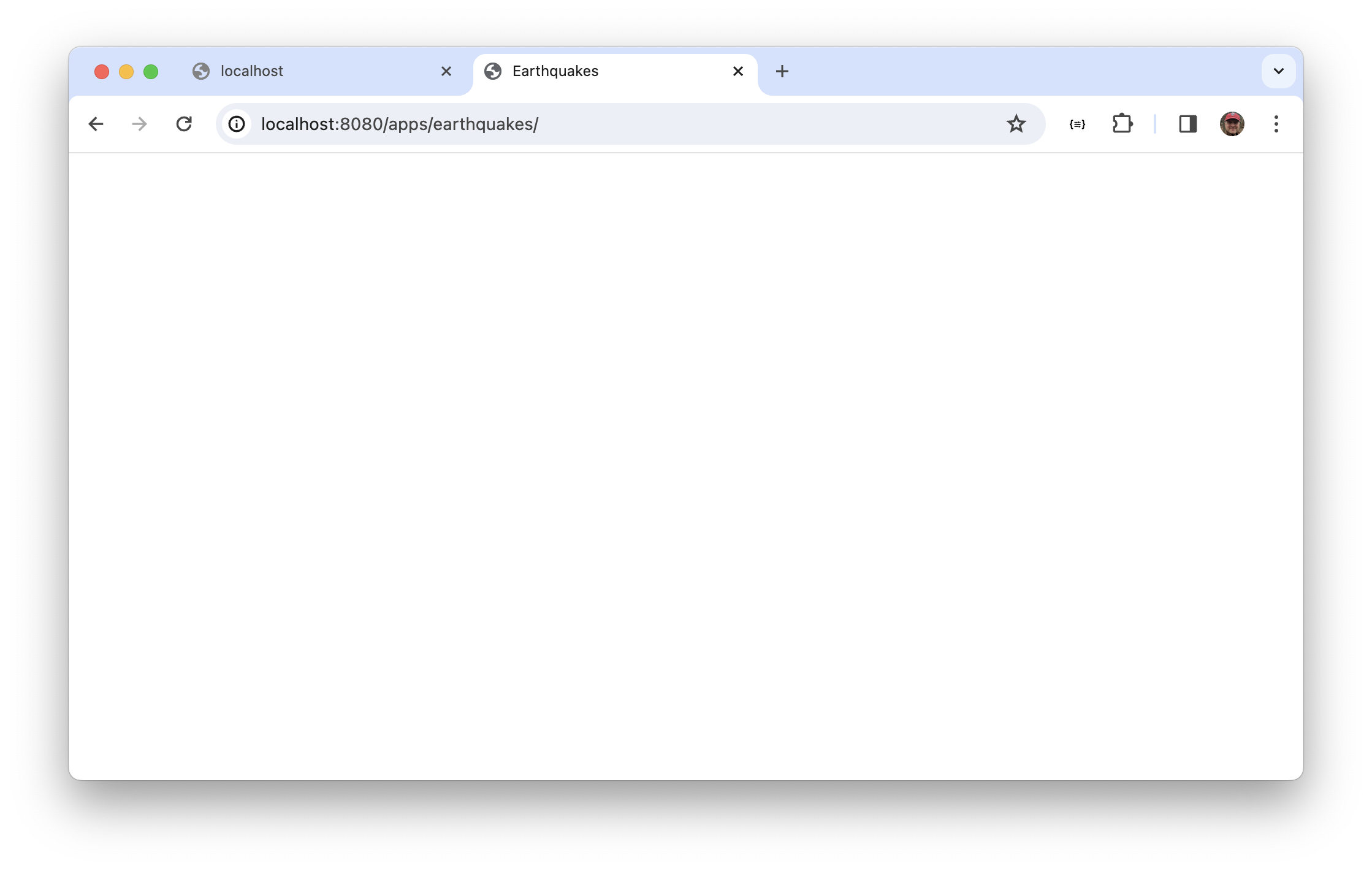

If you refresh browser at http://localhost:8080/apps/ you'll see the new earthquakes app listed, and if you run it you'll see... nothing! That's because the minimal starter app is the shell of an application without any view content. We'll add a little content later in the lab.

Use a code editor and look at workspace/apps/earthquakes/src/view/MainView.mjs. You'll see the following class definition:

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Controller        from './MainViewController.mjs';
import MainStateProvider from './MainStateProvider.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {module: MainStateProvider},

        layout: {ntype: 'fit'},
        items: [],
    }
}

export default Neo.setupClass(MainView);

As you can see, MainView extends Base, and Base is a container (Neo.container.Base). A container is a component — it holds other components, specified in items:[]. There are no items in the starter app. The layout config specifies how the items are arranged.

Let's add a button. To do that, add an import for the button base class, then configure it in the container's items:[]. If you were to read the API docs for buttons, you'd see that buttons have various configs, such as text, which is the button text, iconCls, which is typically a FontAwesome CSS class used to show an icon, and handler, which specifies which method to run when the button is clicked. We'll use text.

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Button            from '../../../node_modules/neo.mjs/src/button/Base.mjs';
import Controller        from './MainViewController.mjs';
import MainStateProvider from './MainStateProvider.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {module: MainStateProvider},

        layout: {ntype: 'fit'},
        items: [{
            module: Button,
            text: 'Button!'
        }],
    }
}

export default Neo.setupClass(MainView);

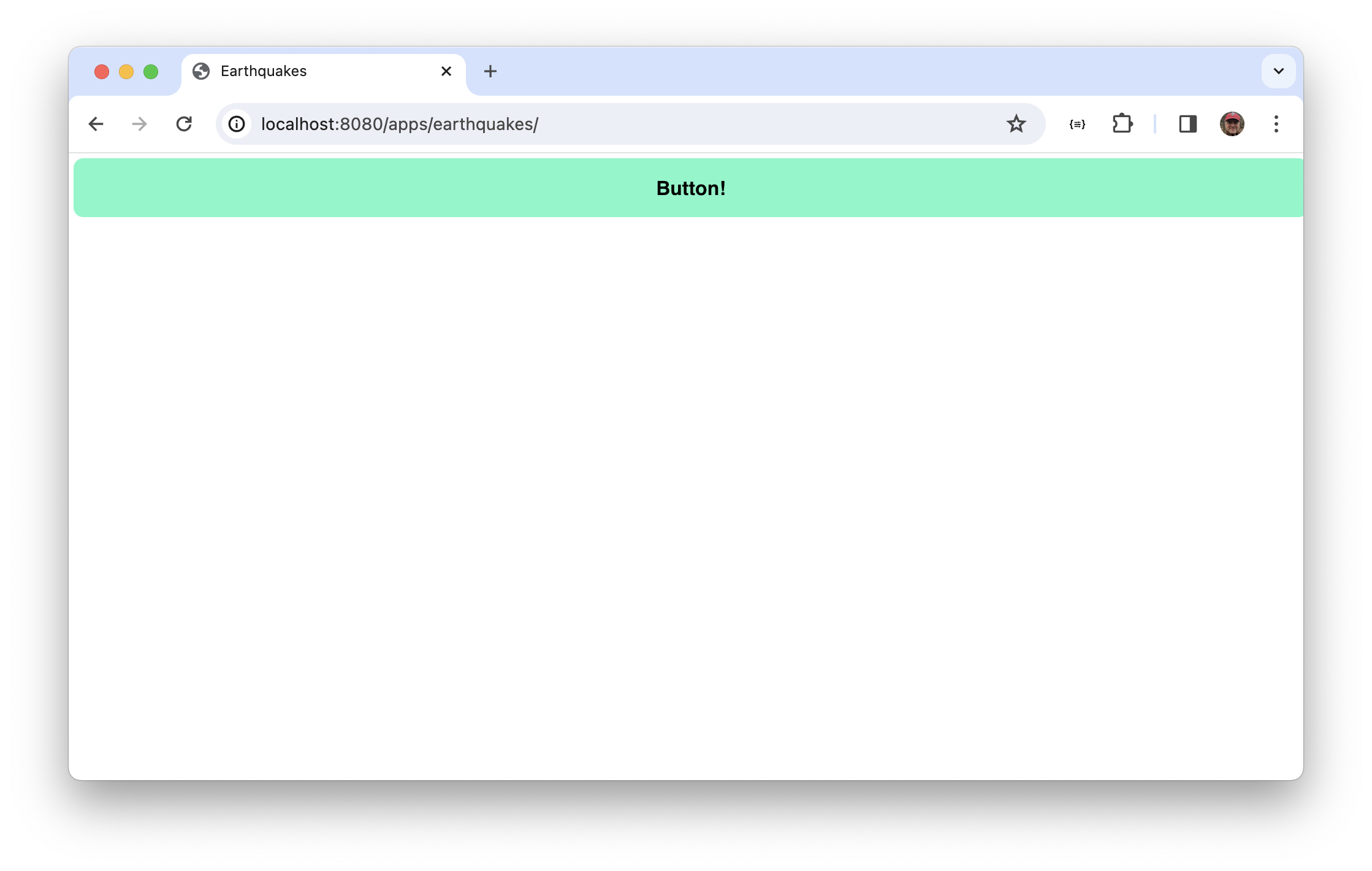

When you run the app you'll see the single button.

The button takes up the full width. Buttons look different depending on the theme. We're using the neo-theme-neo-light theme, which controls button height. Otherwise, child items a using the fit layout take up the full window.

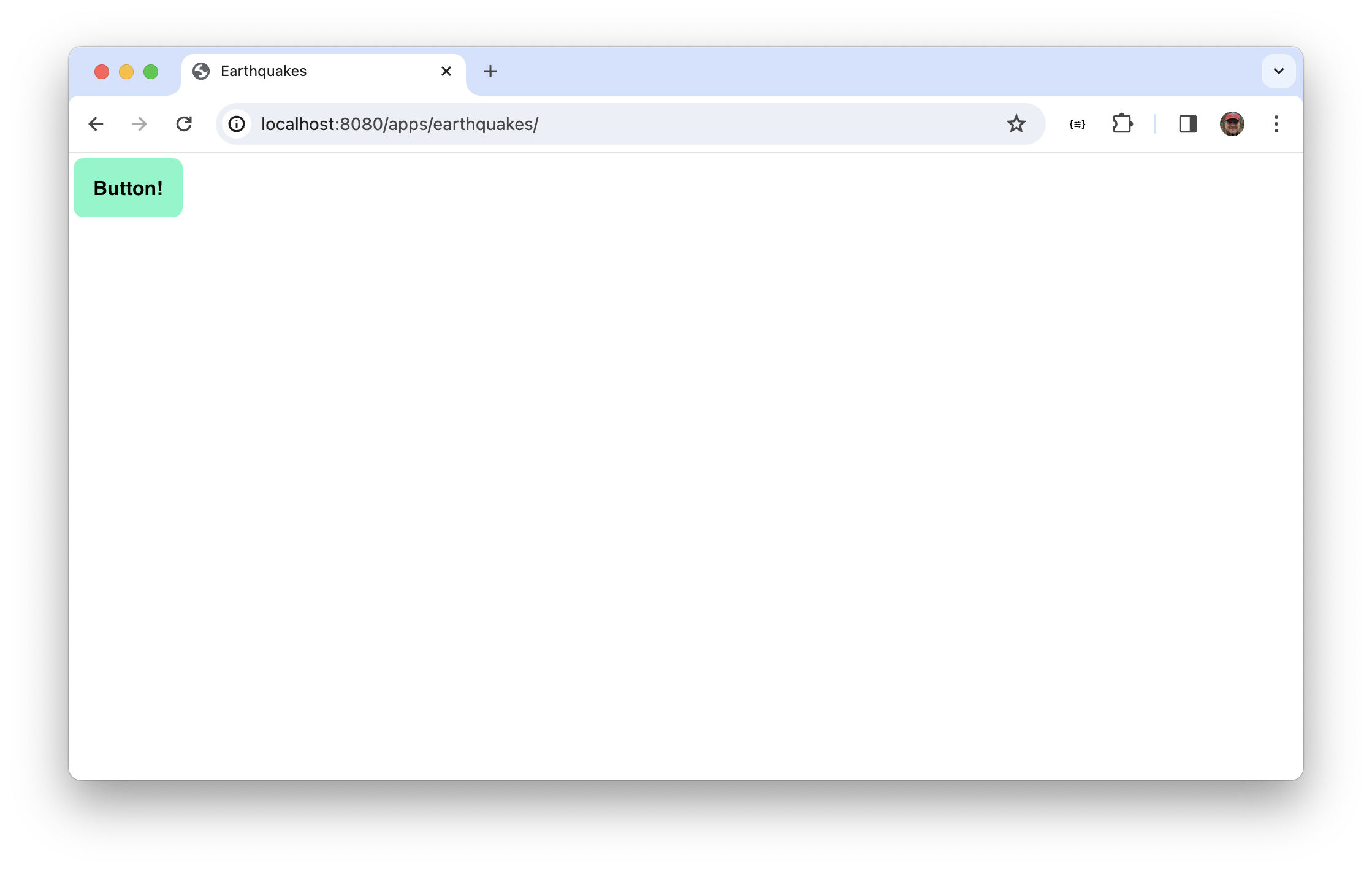

Let's change the layout to arrange items vertically, with items aligned horizontally at the start.

layout: {
    ntype: 'vbox',
    align: 'start'
}

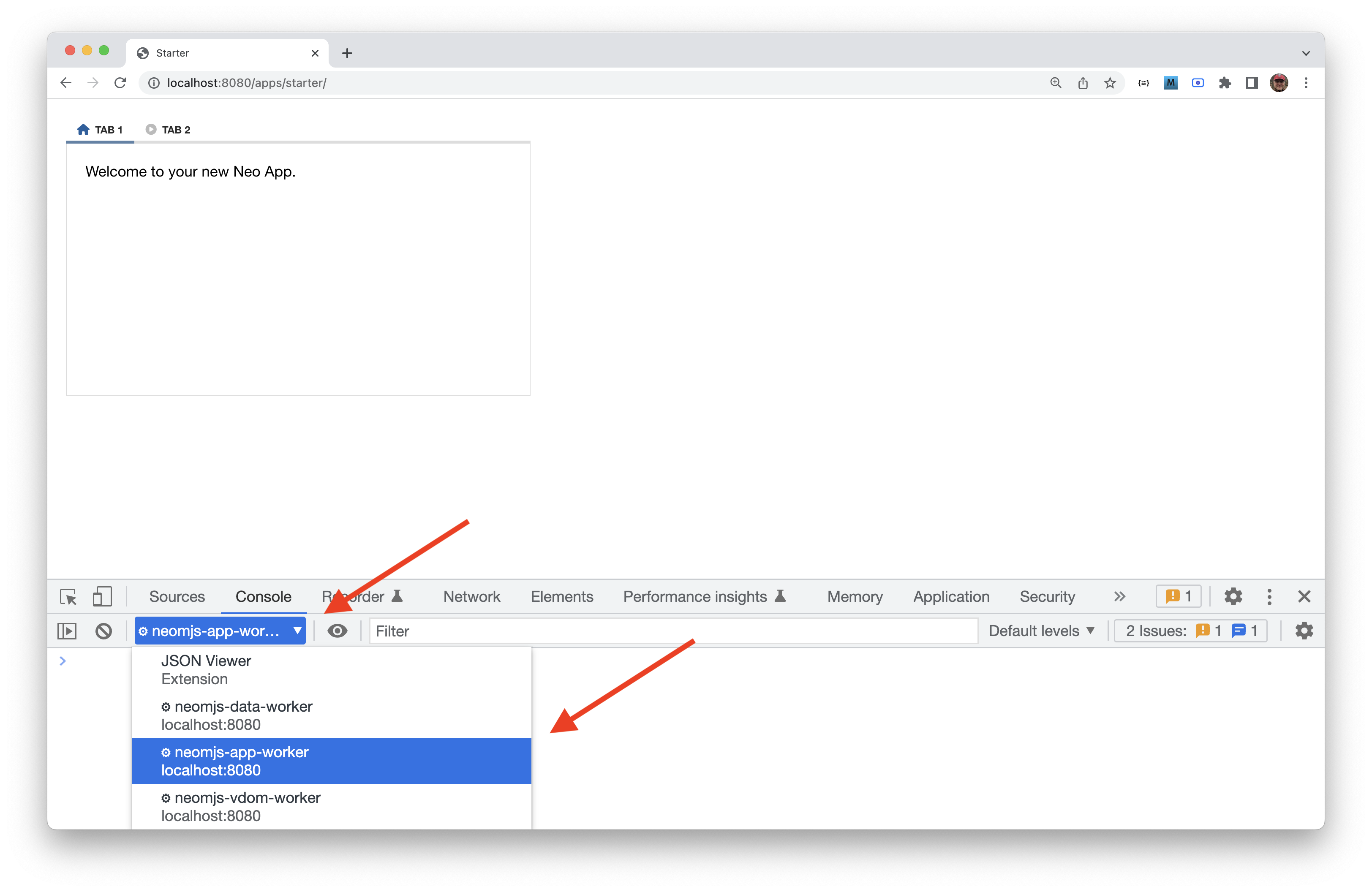

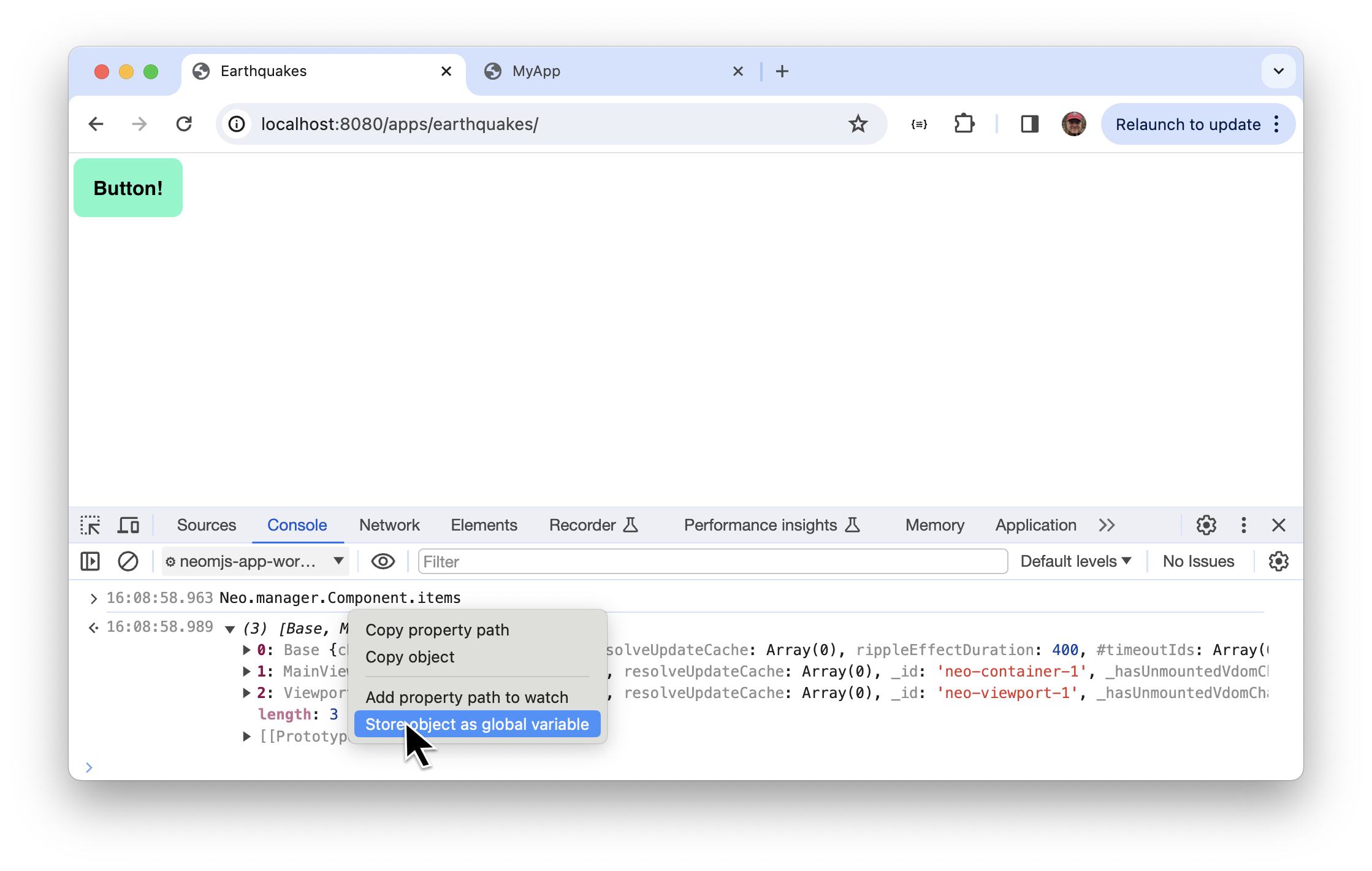

While running the earthquakes app, open Chrome devtools, choose the neomjs-app-worker JavaScript context, and run this statement:

Neo.manager.Component.items

The items property is an array of all created components. The array may have a lot of entries, depending on the complexity of an app and how much you've done while running it. But it's an easy way to explore what's been created.

Any time you have a object reference in the console — even if it's nested within an array or object — you can right click on the object and choose Store as global variable. Chrome will create a variable named temp1, temp2, etc., that references the object. That can make it easier to inspect the object and run its methods..

If you know what you're looking for, and don't want to bother inspecting everything in Neo.manager.Component.items, you can use Neo.find(), passing an object used to match against what you're searching for.

Neo.find() returns an array of matching instances, and Neo.findFirst() returns the first matching item. Often you know there's only a single instance, so in practice Neo.findFirst() is more commonly used.

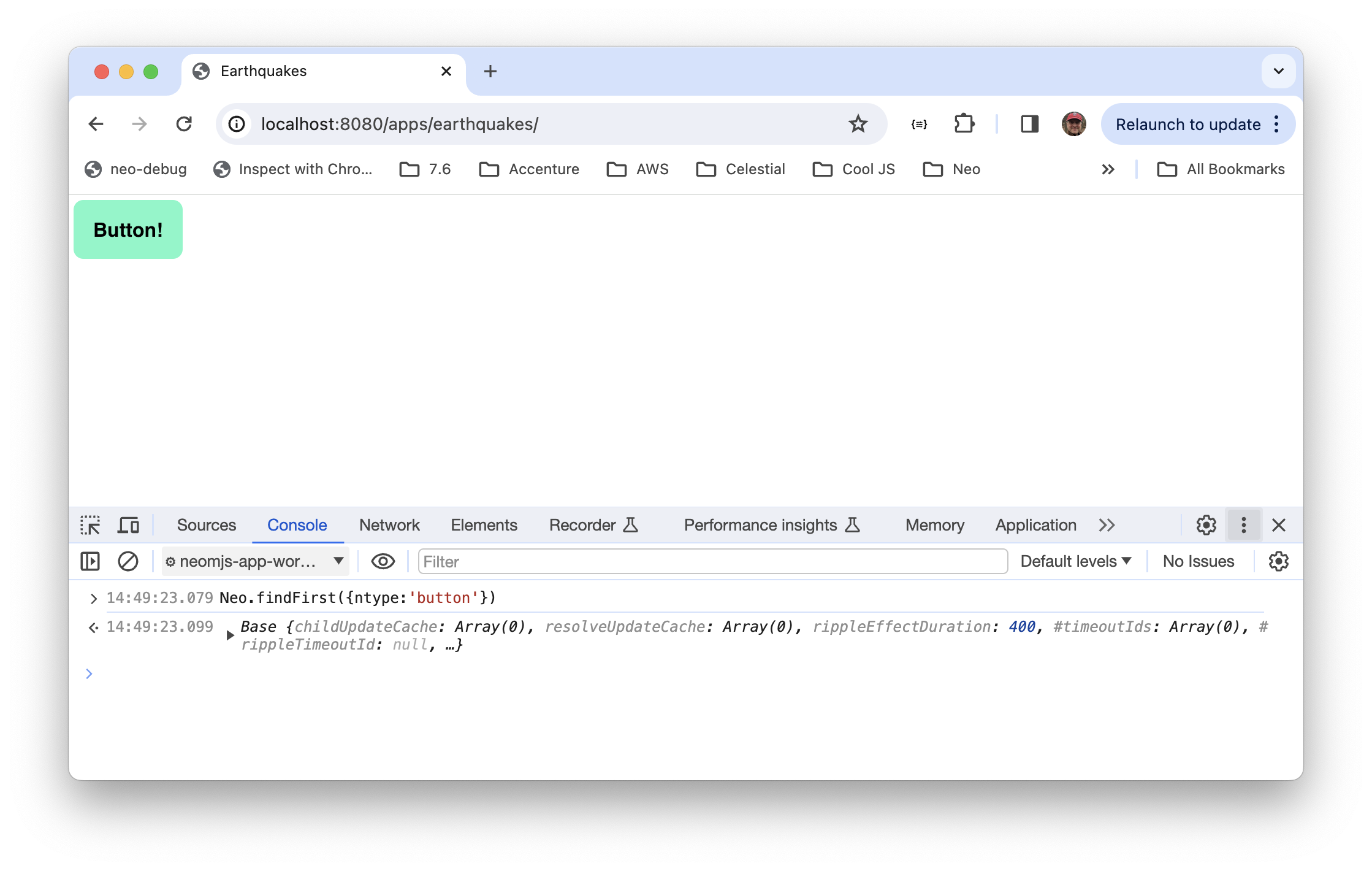

You could find the button via Neo.find({ntype:'button'}) or Neo.find({text:'Button!'} (assuming you haven't changed the button's text.) You can even match a property you give the button. For example, if you configured it with a made-up property foo:true, you could find it via Neo.findFirst({foo:true}). The point is you can search for any properties you'd like.

Try this out.

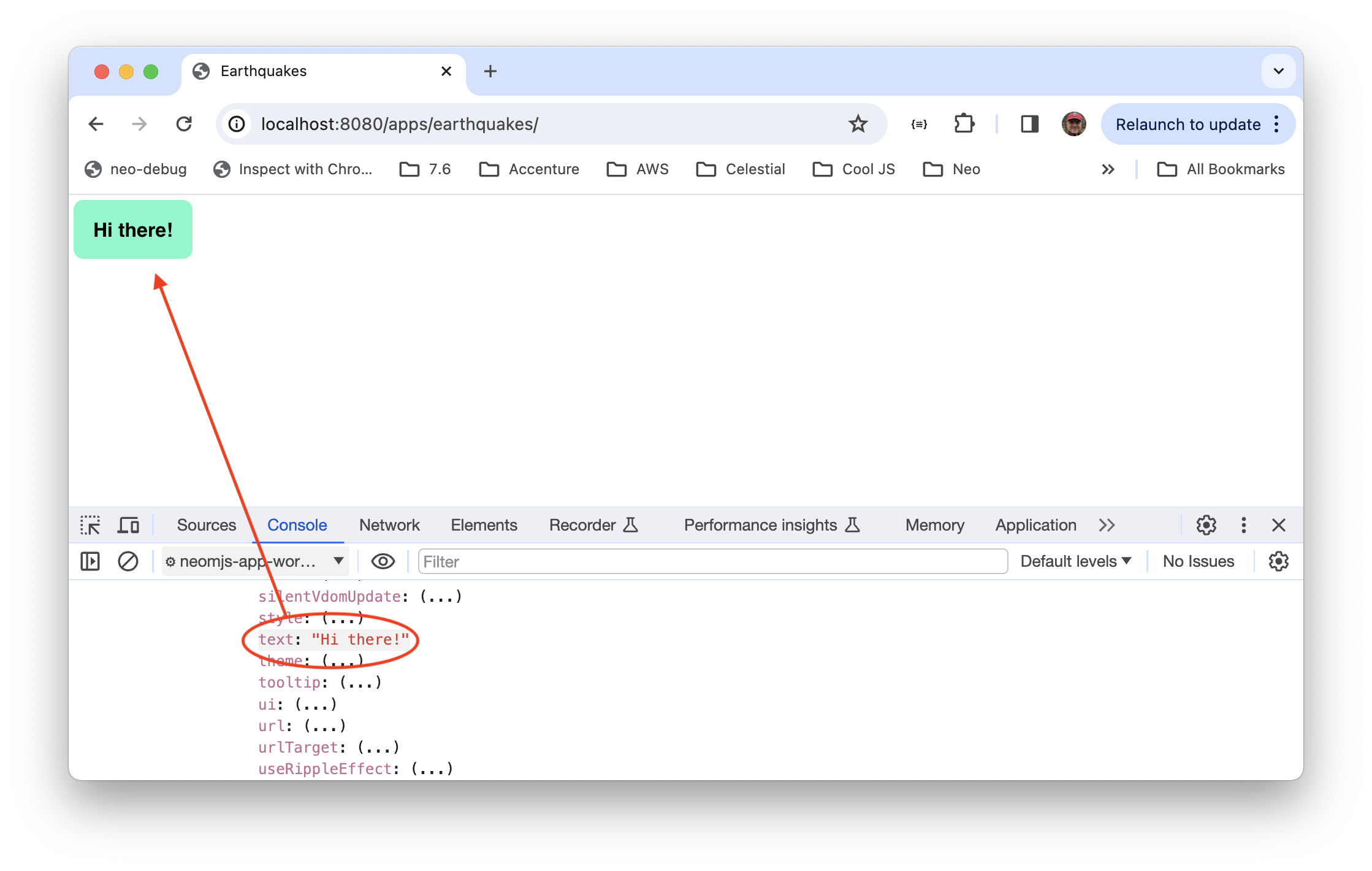

`Neo.findFirst({text:'Button!'}).text = 'Foo!'

You should see the button's text change immediately.

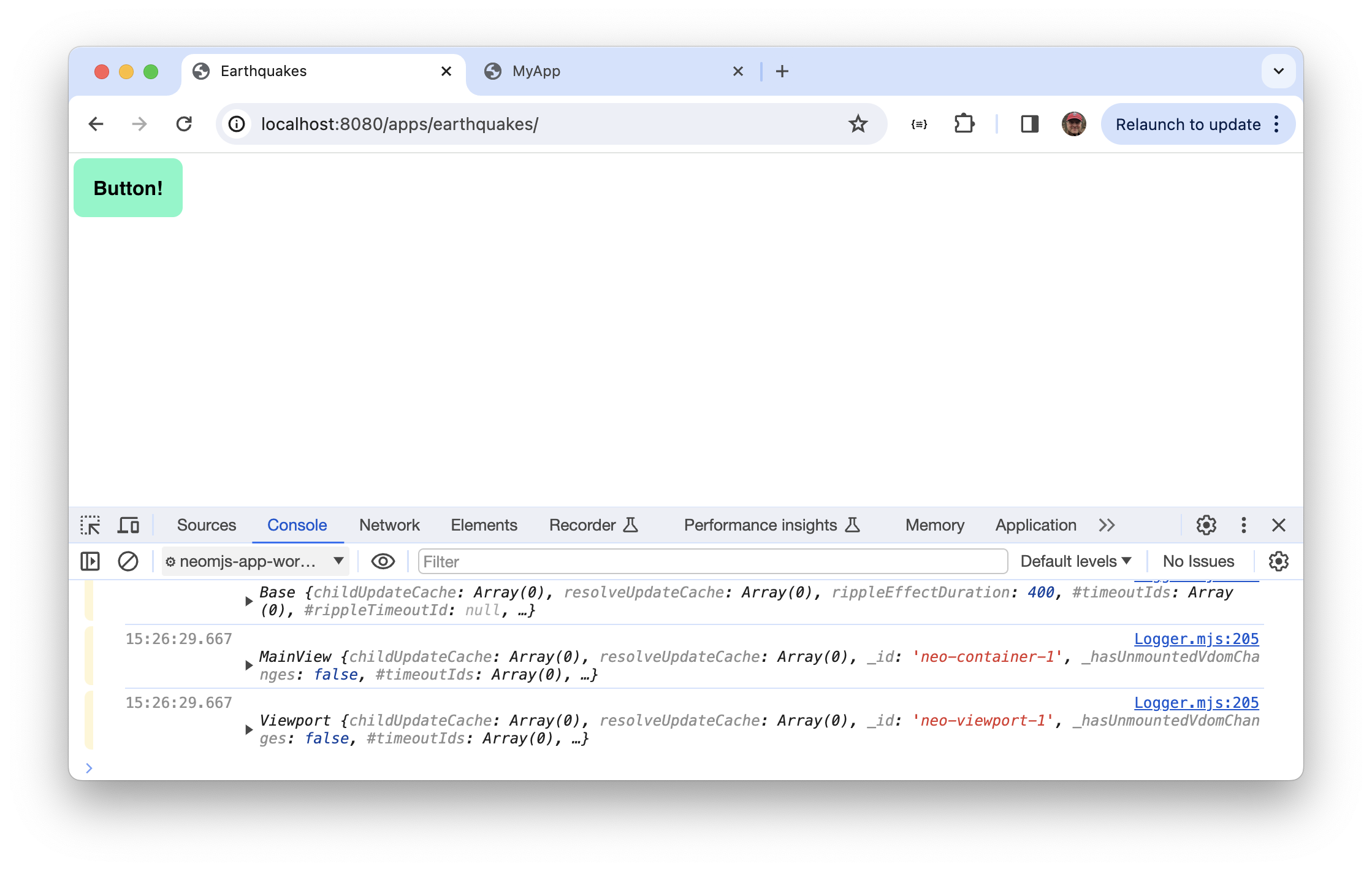

With your cursor over the button, press Shift-Ctrl-right-click. The console will log the button, its parent MainView and the subsequent parent Viewport. The button reference shows up as Basebecause the button class name isNeo.button.Base`.

Note that Shift-Ctrl-right-click is only available during development — it isn't available in a build.

As we mentioned, when debugging, if you a have a reference you can access or update its properties, or run its methods. Let's try that out by adding a method.

Edit apps/earthquakes/view/MainView.mjs and add a method.

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Button            from '../../../node_modules/neo.mjs/src/button/Base.mjs';
import Controller        from './MainViewController.mjs';
import MainStateProvider from './MainStateProvider.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {module: MainStateProvider},

        layout: {
            ntype: 'vbox',
            align: 'start'
        },
        items: [{
            module: Button,
            foo: true,
            text: 'Button!'
        }],
    }
    doFoo() {
        console.log('foo!');
    }
}

export default Neo.setupClass(MainView);

Save your changes.

As you can see, the code defined an instance method doFoo() that simply logs a message. We'll run the method via debugging techniques in the next step.

On the console run Neo.component.Manager.items. Expand the array and right-click on the entry for MainView and choose Store object as global variable. Then type temp1.doFoo() — you should see "foo!" being logged.

Remember that you must run console statement in the neomjs-app-worker context, and every time your choose Store object as global variable it'll increment the name of the temp variable: temp1, temp2, etc.

Now try the Shift-Ctrl-right-click technique.

With your cursor over the button, do a Shift-Ctrl-right-click — you'll see the component hierarchy logged. As you did in the previous step, right-click on the entry for MainView and choose Store object as global variable. Then run doFoo() using that variable.

Replace the button with a table by replacing MainView.mjs with the following content.

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Table             from '../../../node_modules/neo.mjs/src/table/Container.mjs';
import Store             from '../../../node_modules/neo.mjs/src/data/Store.mjs';
import Controller        from './MainViewController.mjs';
import MainStateProvider from './MainStateProvider.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {module: MainStateProvider},

        layout: {ntype: 'vbox', align: 'stretch'},
        items: [{
            module: Table,
            store: {
                module: Store,
                model: {
                    fields: [{
                        name: "location",
                    }, {
                        name: "magnitude",
                    }, {
                        name: "timestamp",
                        type: "Date",
                    }],
                },
                url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                responseRoot: "data",
                autoLoad: true,
            },
            style: {width: '100%'},
            columns: [{
                dataField: "timestamp",
                text: "Date",
                renderer: (data) => data.value.toLocaleDateString(undefined,
                    {weekday: "long", year: "numeric", month: "long", day: "numeric"}
                )
            }, {
                dataField: "location",
                text: "Location"
            }, {
                dataField: "magnitude",
                text: "Magnitude",
                align: "right",
                renderer: (data) => data.value.toLocaleString()
            }]
        }]
    }
}

export default Neo.setupClass(MainView);

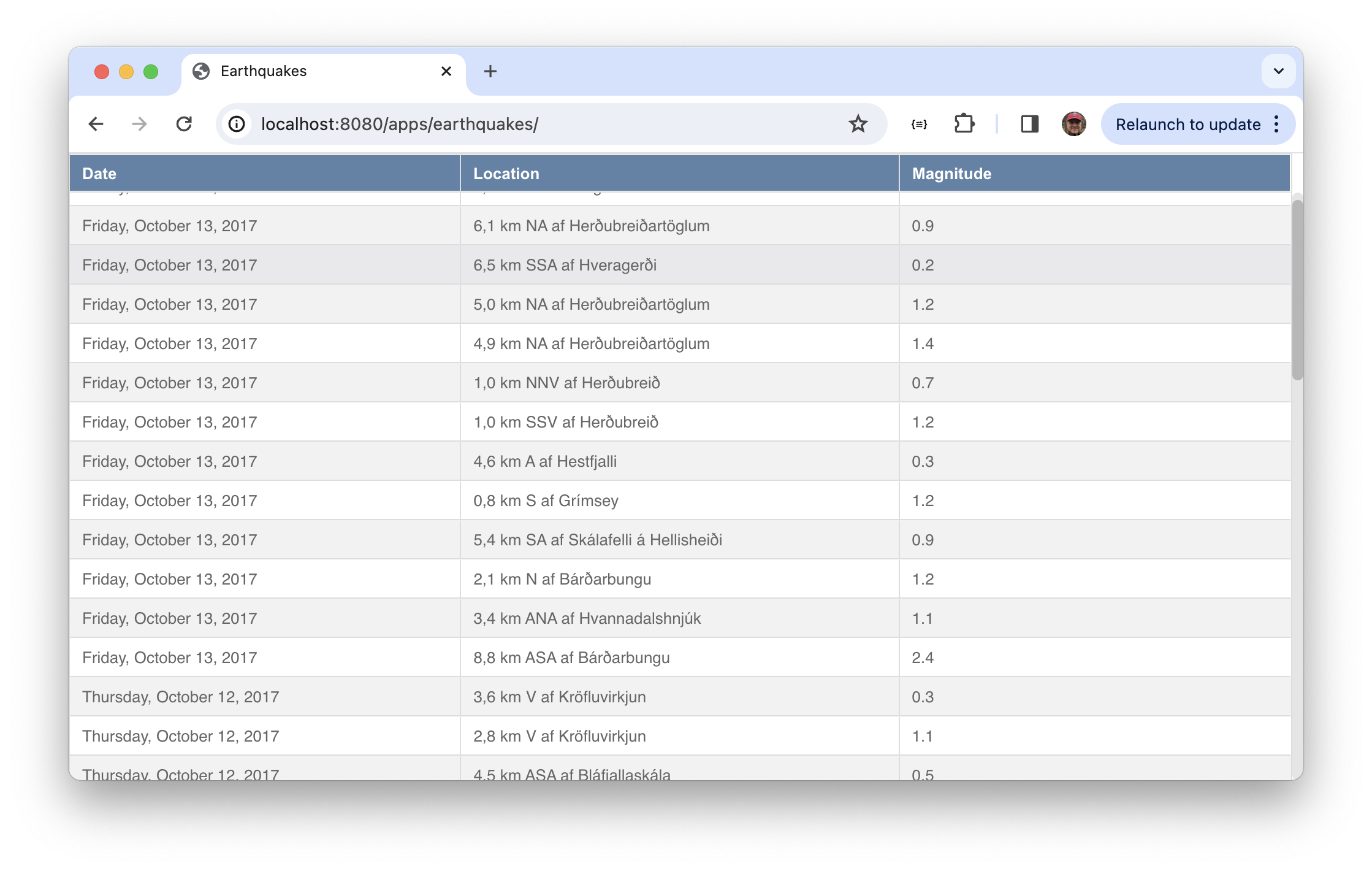

Save and refresh.

Create a new file named apps/earthquakes/view/earthquakes/Table.mjs with this content.

import Base from '../../../../node_modules/neo.mjs/src/table/Container.mjs';

class Table extends Base {
    static config = {
        className: 'Earthquakes.view.earthquakes.Table',
        ntype: 'earthquakes-table',
        layout: {ntype: 'vbox', align: 'stretch'},
        style: {width: '100%'},
        columns: [{
            dataField: "timestamp",
            text: "Date",
            renderer: (data) => data.value.toLocaleDateString(undefined, {weekday: "long", year: "numeric", month: "long", day: "numeric"})
        }, {
            dataField: "location",
            text: "Location"
        }, {
            dataField: "magnitude",
            text: "Magnitude",
            align: "right",
            renderer: (data) => data.value.toLocaleString()
        }],
    }
}

export default Neo.setupClass(Table);

• The class extends Neo.table.Container
• It has an ntype, which we can use when creating an instance, or when debugging
• Each column has text and dataField configs, and some have renderers

Edit apps/earthquakes/view/MainView and make these changes.

• Add import EarthquakesTable from './earthquakes/Table.mjs';
• Replace the module: Table with module: EarthquakesTable
• Remove the columns:[] config
• Leave the store config alone

Save and refresh the browser, and your app should run as before.

You can confirm that the new class is being loaded by using DevTools to try to open earthquakes/Table — if it was imported, it'll be listed.

You can confirm that an instance was created by using the DevTools console and searching for it via

Neo.first('earthquakes-table')

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Controller        from './MainViewController.mjs';
import EarthquakesTable  from './earthquakes/Table.mjs';
import MainStateProvider from './MainStateProvider.mjs';
import Store             from '../../../node_modules/neo.mjs/src/data/Store.mjs';

class MainView extends Base {
static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {module: MainStateProvider},

        layout: {ntype: 'vbox', align: 'stretch'},
        items: [{
            module: EarthquakesTable,
            store: {
                module: Store,
                model: {
                    fields: [{
                        name: "location",
                    }, {
                        name: "magnitude",
                    }, {
                        name: "timestamp",
                        type: "Date",
                    }],
                },
                url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                responseRoot: "data",
                autoLoad: true,
            },
            style: {width: '100%'},
        }],
    }
}

export default Neo.setupClass(MainView);

When we refactored the table into its own class we didn't move all the configs. Both the width styling and store were left in MainView. Why?

It's a matter of re-use and what you need in a given situation. By leaving the width specification outside the table class we're to specify a different value in all the places we're using the table.

Similarly, if the store were in the table class, it would be using that specific store and each instance of the table would have its own instance of the store. If we want multiple instance of the table with each using a different store — or if we wanted to share the store with other components — then it makes sense for the store to be outside the table class.

To further illustrate that the table is reusable, let's create a second instance.

Simply copy-and-paste the value in the MainView items with an identical second item.

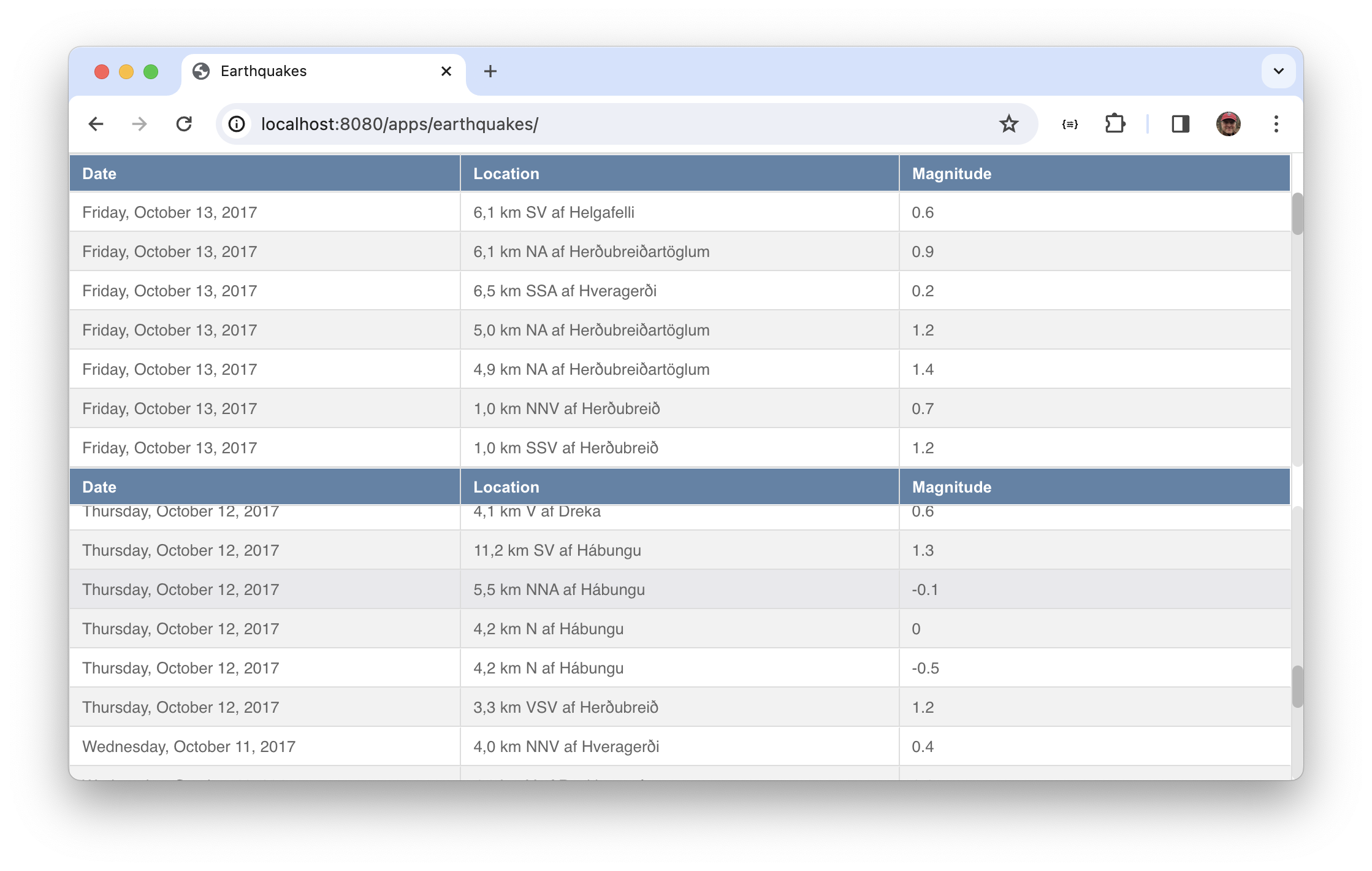

Save and refresh and you should see two tables.

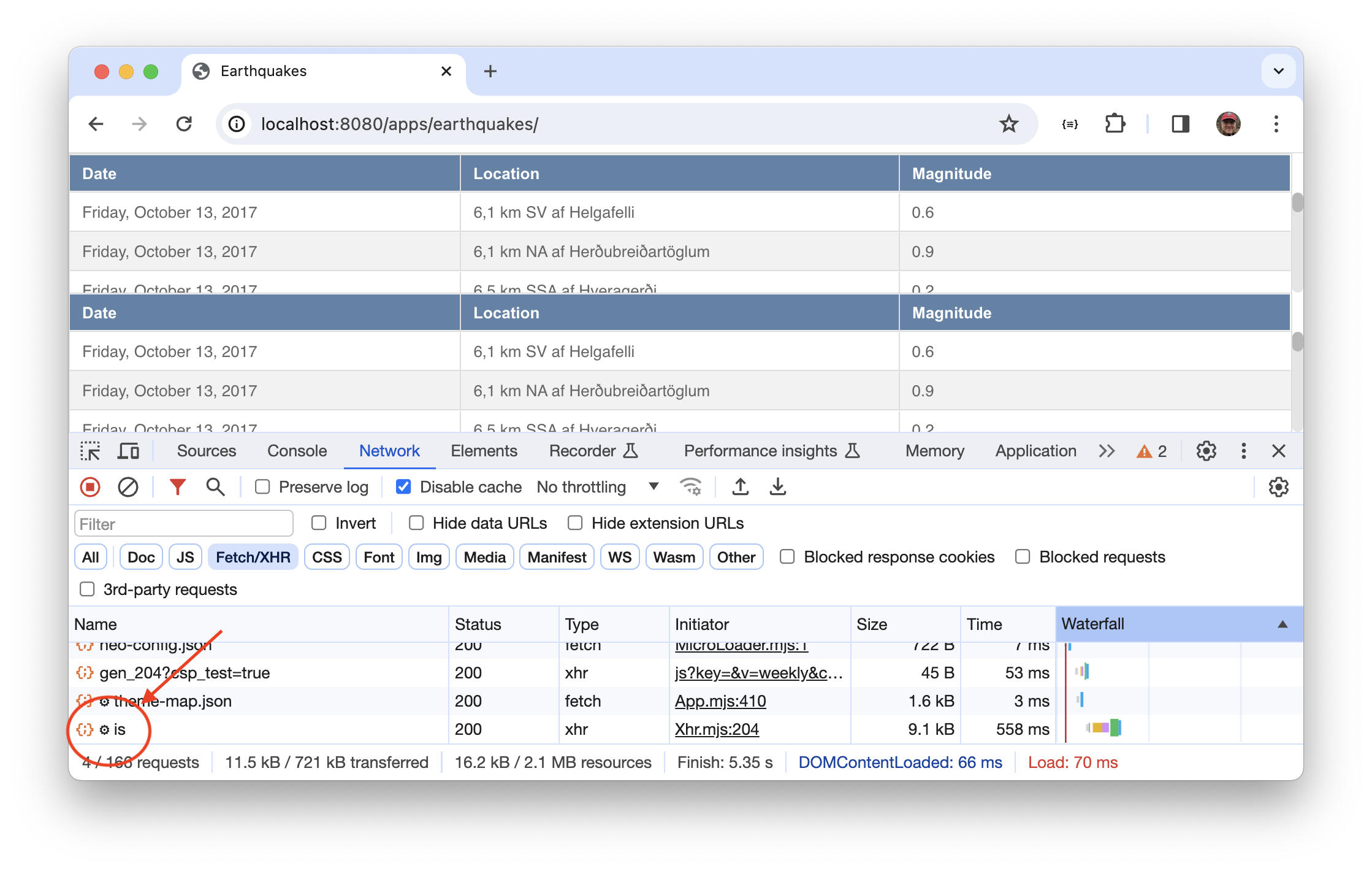

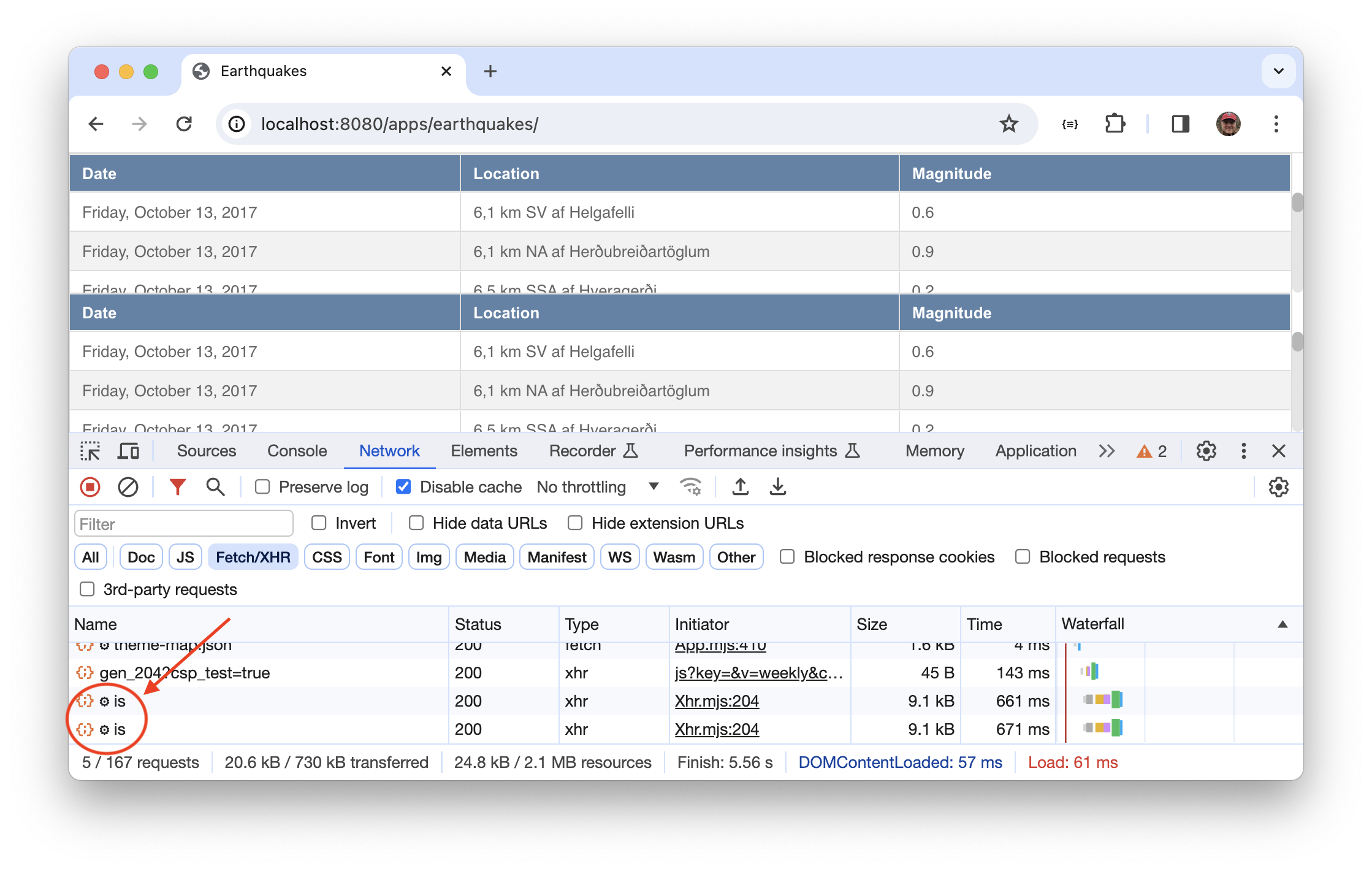

Before making any changes, open devtools in the Network tab and refresh earthquakes. You'll see two calls to the web service.

State Providers have two key configs: data and stores.

• data holds name/value pairs where the value can be a simple value, or object references
• stores holds configs of stores

Add a stores property to the state provider config that holds a copy of the store.

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Controller        from './MainViewController.mjs';
import EarthquakesTable  from './earthquakes/Table.mjs';
import MainStateProvider from './MainStateProvider.mjs';
import Store             from '../../../node_modules/neo.mjs/src/data/Store.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',

        controller: {module: Controller},
        stateProvider: {
            module: MainStateProvider,
            stores: {
                earthquakes: {
                    module: Store,
                    model: {
                        fields: [{
                            name: "location"
                        }, {
                            name: "magnitude"
                        }, {
                            name: "timestamp",
                            type: "Date"
                        }]
                    },
                    url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                    responseRoot: "data",
                    autoLoad: true
                },
            }
        },

        layout: {
            ntype: 'vbox', align: 'stretch'
        },
        items: [{
            module: EarthquakesTable,
            store: {
                module: Store,
                model: {
                    fields: [{
                        name: "location"
                    }, {
                        name: "magnitude"
                    }, {
                        name: "timestamp",
                        type: "Date"
                    }]
                },
                url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                responseRoot: "data",
                autoLoad: true
            },
            style: {width: '100%'}
        },{
            module: EarthquakesTable,
            store: {
                module: Store,
                model: {
                    fields: [{
                        name: "location"
                    }, {
                        name: "magnitude"
                    }, {
                        name: "timestamp",
                        type: "Date"
                    }]
                },
                url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                responseRoot: "data",
                autoLoad: true
            },
            style: {width: '100%'}
        }],
    }
}

export default Neo.setupClass(MainView);

In the stores config we named the store earthquakes. We could have named it anything, like foo or myStore. We're calling it earthquakes simply because that seems like a good descriptive name of the data the store holds.

At this point we have three identical store configs! Save and refresh, and look at network traffic — you should see three calls.

Having an instance in the state provider means we can share it. It can be shared anywhere in the containment hierarchy. The app doesn't have much of a hierarchy: it's just the main view and two child components (the two tables). But now that the store is in the parent's state provider we can share it.

The way to bind an instance to a state provider property is with the bind config. For example

bind: {
    store: 'stores.earthquakes'
}

binds a store property to a store called foo. The code is saying in the future, when the value of "stores.earthquakes" changes, assign it to this object's "store" property. In this case, stores.earthquakes starts out undefined, then at runtime within a few milliseconds as the state provider is processed, the configured store is created and a reference is assigned to stores.earthquakes. That wakes the binding up, and the value is assigned to the table's store property.

Replace each table's store config with the binding.

import Base              from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Controller        from './MainViewController.mjs';
import EarthquakesTable  from './earthquakes/Table.mjs';
import MainStateProvider from './MainStateProvider.mjs';
import Store             from '../../../node_modules/neo.mjs/src/data/Store.mjs';

class MainView extends Base {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',
        controller: {module: Controller},
        stateProvider: {
            module: MainStateProvider,
            stores: {
                earthquakes: {
                    module: Store,
                    model: {
                        fields: [{
                            name: "location"
                        }, {
                            name: "magnitude"
                        }, {
                            name: "timestamp",
                            type: "Date"
                        }]
                    },
                    url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                    responseRoot: "data",
                    autoLoad: true
                }
            }
        },

        layout: { ntype: 'vbox', align: 'stretch' },
        items: [{
            module: EarthquakesTable,
            bind: {
                store: 'stores.earthquakes'
            },
            style: {width: '100%'}
        },{
            module: EarthquakesTable,
            bind: {
                store: 'stores.earthquakes'
            },
            style: {width: '100%'}
        }]
    }
}

export default Neo.setupClass(MainView);

Save, refresh, and look at network traffic: you'll see a single call to the web service.

You can further prove we're using a shared instance by running these statements in the console.

a = Neo.findFirst({ntype:'earthquakes-main'}).stateProvider.stores.earthquakes;
b = Neo.find({ntype:'earthquakes-table'})[0].store;
c = Neo.find({ntype:'earthquakes-table'})[1].store;

(a === b) && (a === c) && (b === c) // true

We configured the state provider in-line, in the stateProvider config at the top of MainView. But the starter app has a MainStateProvider class. In theory, if you have a trivial state provider you could configure it in-line. But in general you want to keep that code separate by coding it in a separate class. This is what we did for the table config — we started by coding it in-line in the main view, then we refactored it into its own class. The result was a simpler and more abstract main view. We want to do the same for the state provider.

Since the starter app already provides MainStateProvider, all we need to do is copy the stores property.

Here's the resulting code you should place into MainStateProvider.mjs.

import StateProvider from '../../../node_modules/neo.mjs/src/state/Provider.mjs';
import Store         from '../../../node_modules/neo.mjs/src/data/Store.mjs';

class MainStateProvider extends StateProvider {
    static config = {
        className: 'Earthquakes.view.MainStateProvider',

        data: {},
        stores: {
            earthquakes: {
                module: Store,
                model: {
                    fields: [{
                        name: "location"
                    }, {
                        name: "magnitude"
                    }, {
                        name: "timestamp",
                        type: "Date"
                    }]
                },
                url: "https://nameless-tundra-27404.herokuapp.com/go/?fn=earthquakes",
                responseRoot: "data",
                autoLoad: true
            },
        }
    }
}

export default Neo.setupClass(MainStateProvider);

And you need to remove the stores config from the main view as follows.

import Container         from '../../../node_modules/neo.mjs/src/container/Base.mjs';
import Controller        from './MainViewController.mjs';
import EarthquakesTable  from './earthquakes/Table.mjs';
import MainStateProvider from './MainStateProvider.mjs';

class MainView extends Container {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',
        controller: {module: Controller},
        stateProvider: {
            module: MainStateProvider
        },

        layout: { ntype: 'vbox', align: 'stretch' },
        items: [{
            module: EarthquakesTable,
            bind: {
                store: 'stores.earthquakes'
            },
            style: {width: '100%'}
        },{
            module: EarthquakesTable,
            bind: {
                store: 'stores.earthquakes'
            },
            style: {width: '100%'}
        }]
    }
}

export default Neo.setupClass(MainView);

The refactorings to have separate table and state provider classes means the code is more modular, more reusable, and each class is simpler than using complex source files that try to configure every detail.

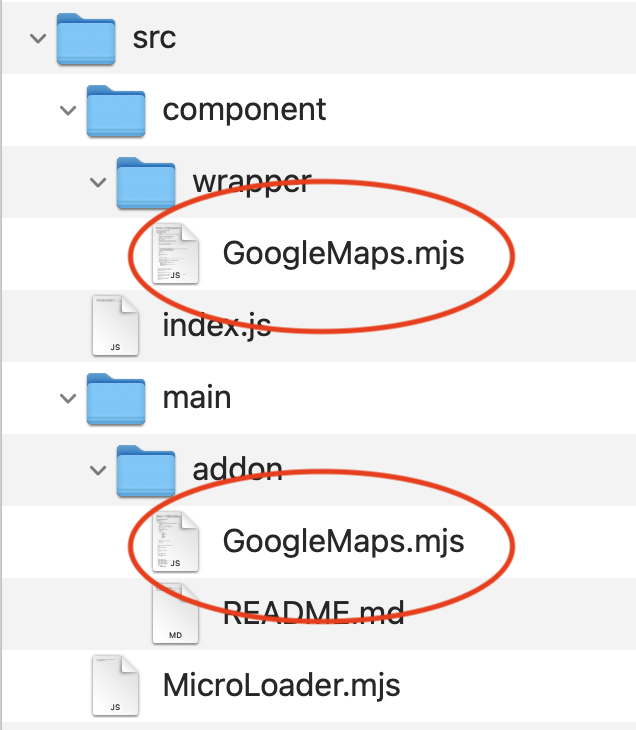

Download and unzip this file, and copy the two source files to the corresponding subdirectories in your workspace's src directory. Note that src already contains some files, so don't replace the whole directory, but instead, move the files to their individual locations.

src.zip

Edit apps/earthquakes/neo-config.json and add entries for the Google Maps add-on and the map key.

{
    "appPath": "../../apps/earthquakes/app.mjs",
    "basePath": "../../",
    "environment": "development",
    "mainPath": "../node_modules/neo.mjs/src/Main.mjs",
    "mainThreadAddons": [
        "DragDrop",
        "Navigator",
        "WS/GoogleMaps",
        "Stylesheet"
    ],
    "googleMapsApiKey": "AIzaSyD4Y2xvl9mGT8HiVvQiZluT5gah3OIveCE",
    "themes"          : ["neo-theme-neo-light"],
    "workerBasePath": "../../node_modules/neo.mjs/src/worker/"
}

It's unusual to need to edit neo-config.json. The app theme is specified there, and so are main thread add-ons. In our case, we're adding WS/GoogleMaps which in turn requires that we specify the map key. The WS/ prefix tells Neo.mjs that the add-on is in our workspace, rather than an add-on provided by Neo.mjs.

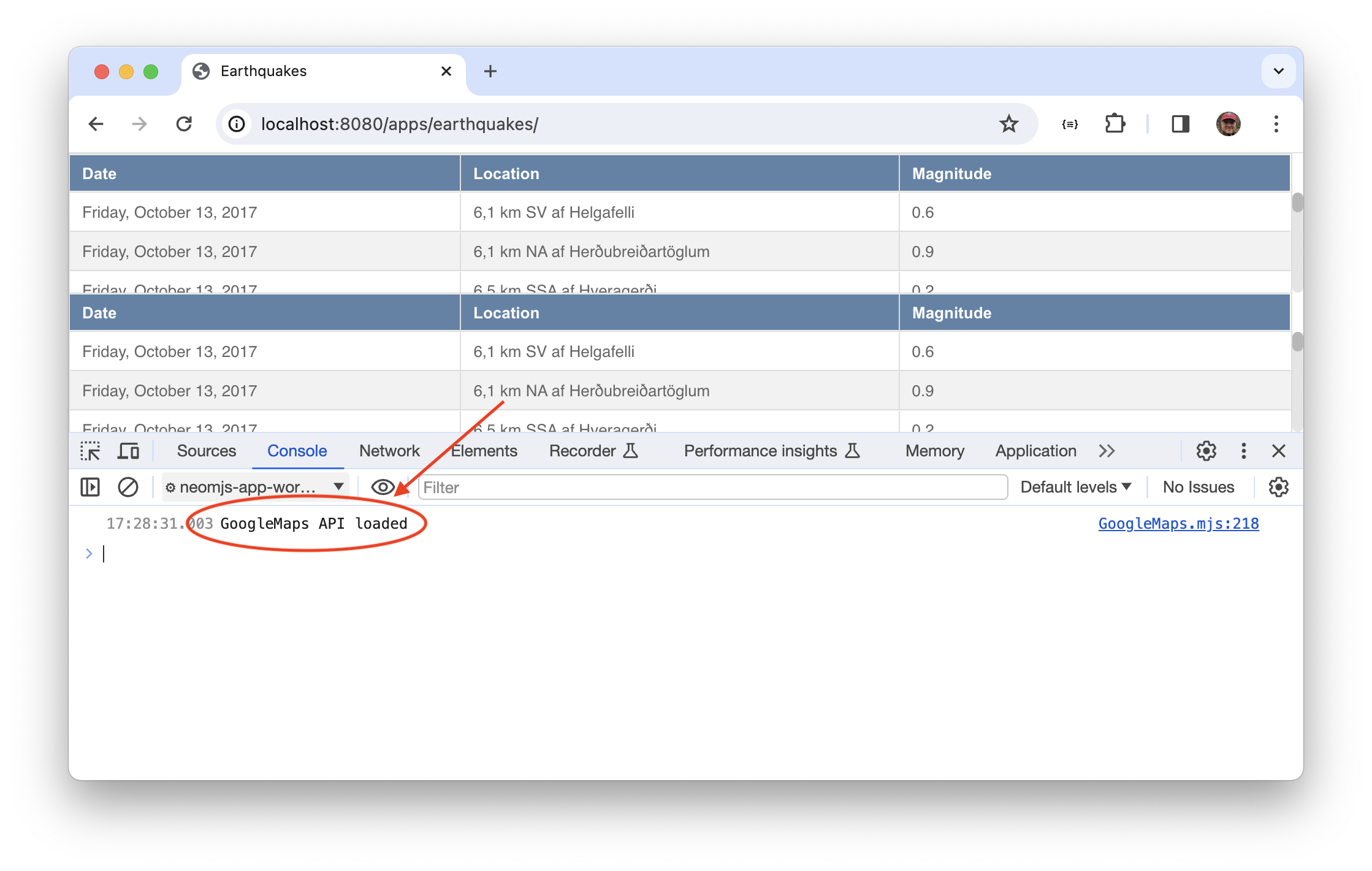

Save and refresh, and you'll see a console log emanating from the plugin.

The Google Maps component has a markerStore property, which is a reference to a store whose records have the properties title and location, where location is of the form {lat: 0, lng: 0}. The fields:[] lets us implement those via two properties:

• mapping — the path to a feed property holding the value
• calculate — a function that returns a value

Edit apps/earthquakes/view/MainStateProvider.mjs and modify fields as follows.

fields: [{
    name: "location",
}, {
    name: "magnitude",
}, {
    name: "timestamp",
    type: "Date",
}, {
    name: 'title',
    mapping: "location"
}, {
    name: "position",
    calculate: (data, field, item)=>({lat: item.latitude, lng: item.longitude})
}],

As you can see, title is mapped to the existing feed value location, and position is calculated by returning an object with lat and lng set to the corresponding values from the feed.

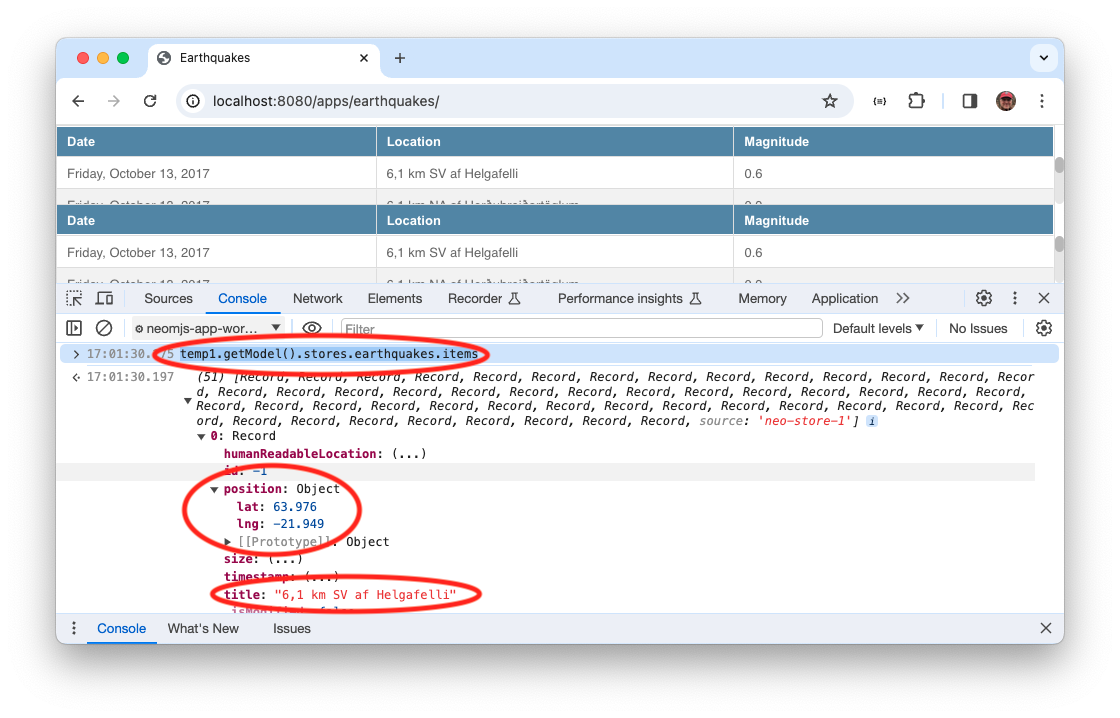

Save and refresh earthquakes. You can use the debugger to inspect the store via Shift-Ctrl-right-click and putting the main view into a global variable. Then run

temp1.getStateProvider().stores.earthquakes.items

Look at one of the items, and you should see that title and location are in each record.

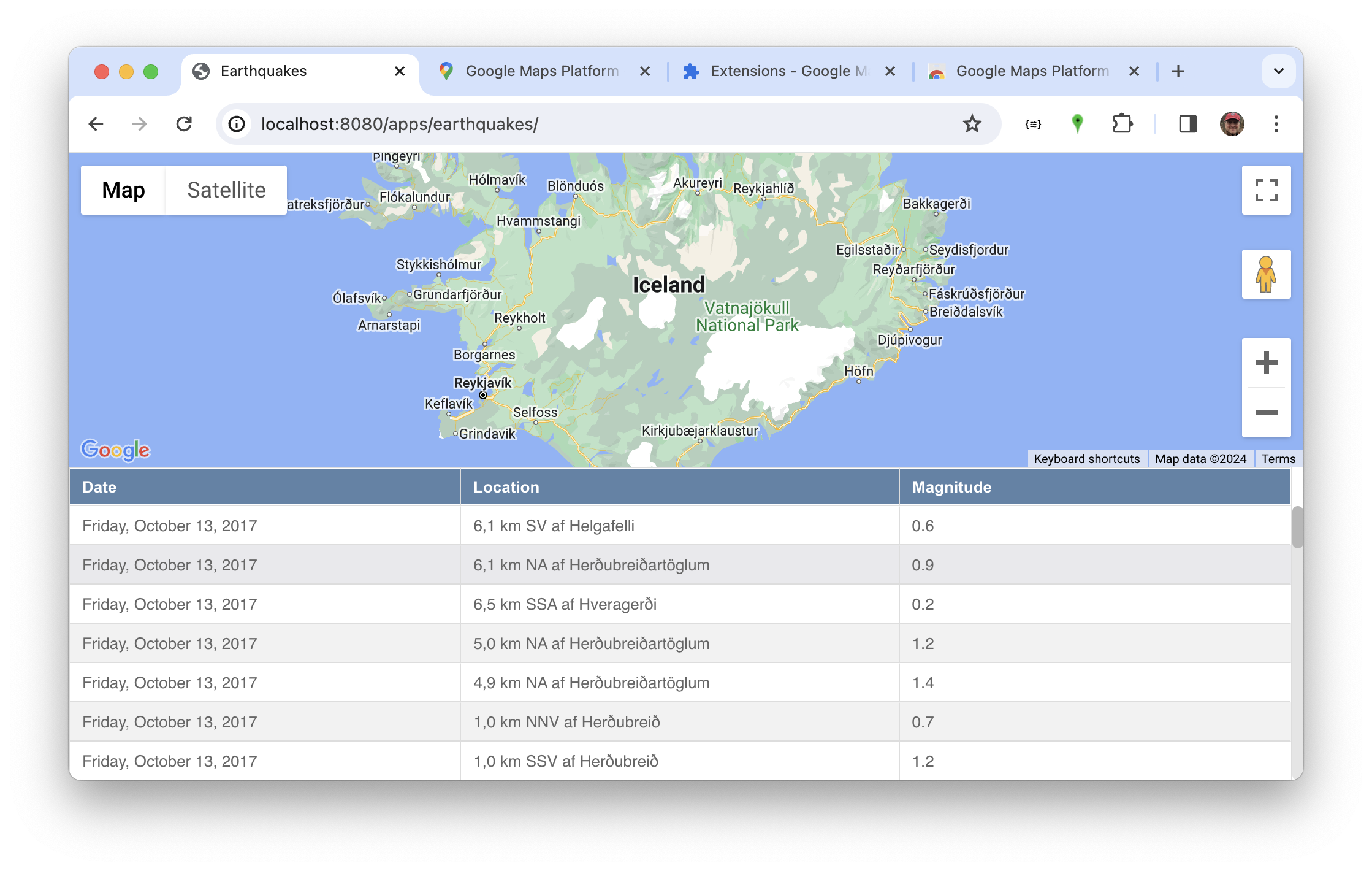

We're going to replace the top table with a Google Map. To do that we need to import the Google Maps component and show it inplace of the top table. The map should be centered on Iceland.

{
    module: GoogleMapsComponent,
    flex: 1,
    center: {
        lat: 64.8014187,
        lng: -18.3096357
    },
    zoom: 6
}

If we replace the top table with the map, view/MainView.mjs ends up with this content.

import Container           from '../container/Base.mjs';
import Controller          from './MainViewController.mjs';
import EarthquakesTable    from './earthquakes/Table.mjs';
import GoogleMapsComponent from '../component/wrapper/GoogleMaps.mjs';
import MainStateProvider   from './MainStateProvider.mjs';

class MainView extends Container {
    static config = {
        className: 'Earthquakes.view.MainView',
        ntype: 'earthquakes-main',
        controller: {module: Controller},
        stateProvider: {
            module: MainStateProvider
        },

        layout: { ntype: 'vbox', align: 'stretch' },
        items: [{
            module: GoogleMapsComponent,
            flex: 1,
            center: {
                lat: 64.8014187,
                lng: -18.3096357
            },
            zoom: 6
        },{
            module: EarthquakesTable,
            bind: {
                store: 'stores.earthquakes'
            },
            style: {width: '100%'},
            wrapperStyle: {
                height: 'auto' // Because neo-table-wrapper sets height:'100%', which it probably shouldn't
            }
        }],
    }
}

export default Neo.setupClass(MainView);

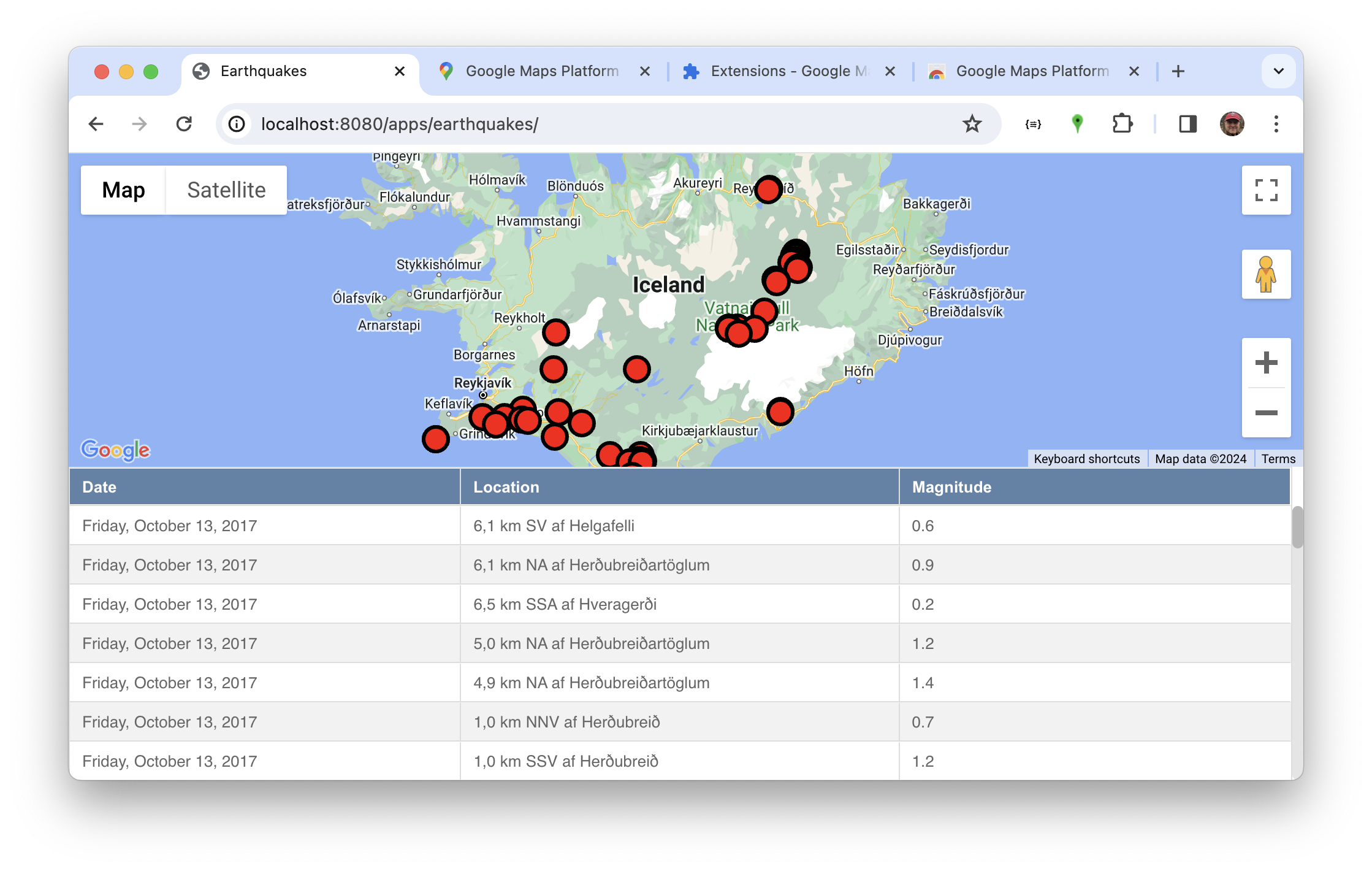

The markers are shown by setting up the marker store, which is a regular store whose records must contain location and title. We assign the store using a bind, just like we did with the tables.

Add this config to the map.

bind: {
    markerStore: 'stores.earthquakes'
}

Table Views fire a select event, passing an object that contains a reference to the corresponding row.

Add this table config:

viewConfig: {
    listeners: {
        select: (data) => console.log(data.record)
    }
}

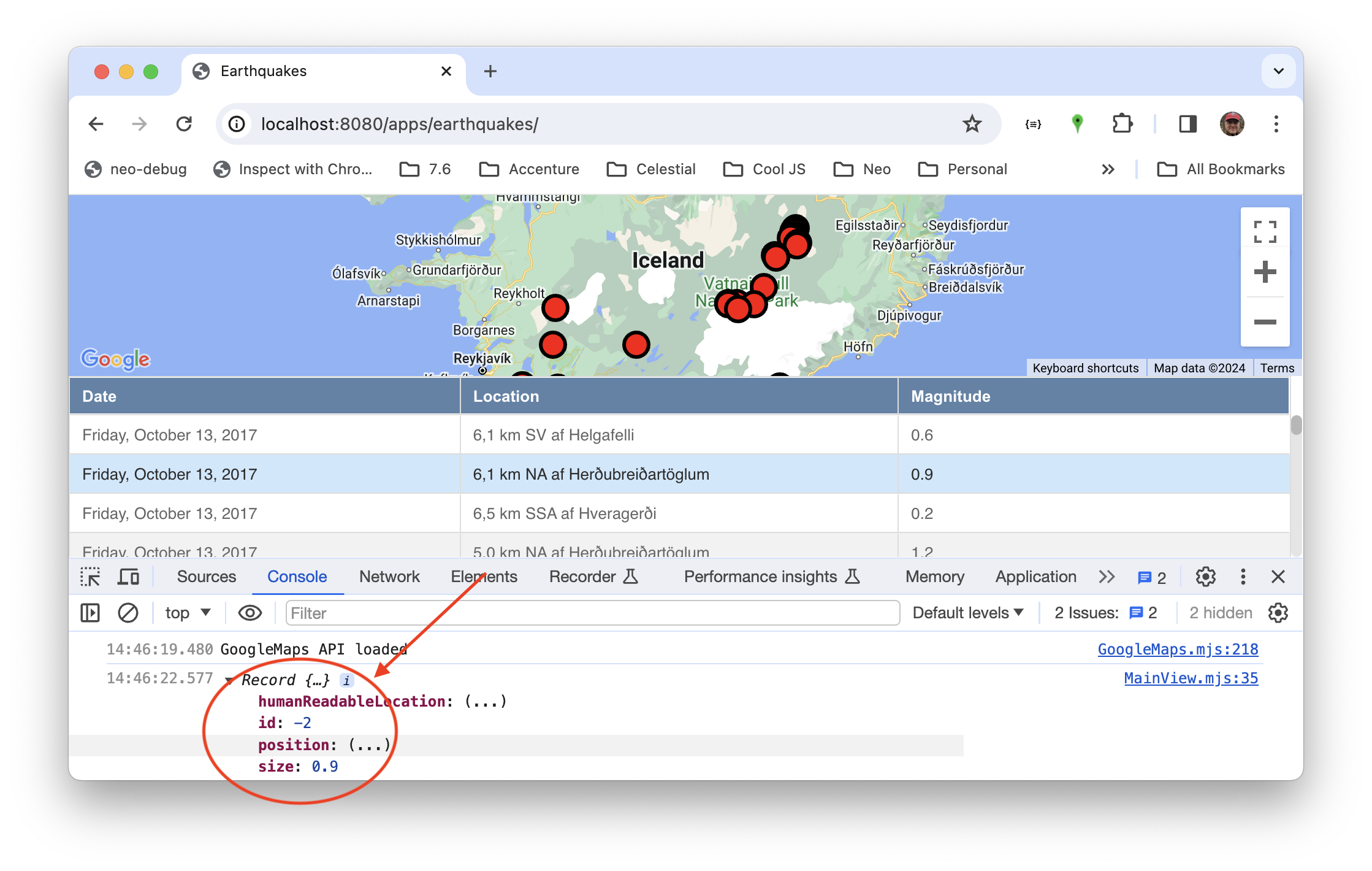

Save and refresh, then click on a table row. If you look at the debugger console you'll see the record being logged.

Just for fun, expand the logged value and look for the magnitude property. If you recall, that's a value from the feed, and one of the things we configured in the store's fields:[].

In the console, click on the ellipses by magnitude and enter a new value, like 2.5. (Don't enter a larger value, or you may destroy that part of Iceland.)

After changing the value you should immediately see it reflected in the table row.

Now add a markerClick listener to the Google Map.

listeners: {
    markerClick: data => console.log(data.data.record)
}

Save, refresh, and confirm that you see the value logged when you click on a map marker.
